TORQUE AUDIT EQUIPMENT SMART SOCKET TRANSDUCERS
RAD SMART SOCKETS
RANGE: 200 – 16.200Nm
The revolutionary socket for measuring torque directly on the bolt.
RAD smart-socket series uses RAD Torque’s transducer technology combined with custom sockets to measure the torque applied to the socket during torque cycle. By innovative design, the smart-socket is no longer than a standard socket.
Intelligent Sockets – Smart Sockets™:
- Measures and displays peak torque
- Built-in rechargeable li-ion battery
- “Pass”/ “Fail”, Track and Peak function
- Data logging – download logs (XLS, CSV, PDF)
- Full traceability of bolted joints
- Bluetooth connectivity
- Preinstalled tablet with RAD Connect – PRODOCS App
- Optional:
- Joint Stand for torque wrench calibration with Smart Sockets™
All RAD Smart Socket™ include:
- Locking pin and o-ring
- USB charger
- Weatherproof storage case
- Preinstalled tablet
- User manual
- Calibration certificate according ISO 17025 standards
Product Data Sheets available below:
Tools Size and Torque Capacity Tables
| PRODUCT No. | MODEL | SQUARE DRIVE SIZE | TORQUE RANGE |
|---|---|---|---|
| 26936 | Smart Socket™ 29 mm | ¾" | 200 - 2.034 Nm |
| 20879 | Smart Socket™ 33 mm | ¾" | 200 - 2.034 Nm |
| 21363 | Smart Socket™ 36 mm | 1" | 200 - 2.034 Nm |
| 22158 | Smart Socket™ 41 mm | 1" | 200 - 2.034 Nm |
| 20880 | Smart Socket™ 46 mm | 1" | 200 - 2.034 Nm |
| 20881 | Smart Socket™ 50 mm | 1" | 400 - 4.050 Nm |
| 20882 | Smart Socket™ 55 mm | 1" | 400 - 4.050 Nm |
| 20883 | Smart Socket™ 60 mm | 1" | 400 - 4.050 Nm |
| 23690 | Smart Socket™ 65 mm | 1½" | 1.100 - 10.800 Nm |
| 20884 | Smart Socket™ 70 mm | 1½" | 1.100 - 10.800 Nm |
| 20885 | Smart Socket™ 80 mm | 1½" | 1.100 - 10.800 Nm |
| 25657 | Smart Socket™ 90 mm | 1½" | 1.100 - 16.200 Nm |
| 25658 | Smart Socket™ 100 mm | 1½" | 1.100 - 16.200 Nm |
| Q14314 | Smart Socket™ 110 mm | 1½" | 1.100 - 16.200 Nm |
Tool Dimensions
| PRODUCT No. | MODEL | WEIGHT | Dim.A | Dim.B | Dim.C | Dim.D |
|---|---|---|---|---|---|---|
| 26936 | Smart Socket™ 29 mm | n/a | n/a | n/a | n/a | n/a |
| 20879 | Smart Socket™ 33 mm | 1,2 Kg | 72 mm | 42 mm | 70 mm | 100 mm |
| 21363 | Smart Socket™ 36 mm | 1,2 Kg | 72 mm | 54 mm | 65 mm | 100 mm |
| 22158 | Smart Socket™ 41 mm | 1,2 Kg | 72 mm | 54 mm | 65 mm | 87 mm |
| 20880 | Smart Socket™ 46 mm | 1,2 Kg | 72 mm | 54 mm | 65 mm | 87 mm |
| 20881 | Smart Socket™ 50 mm | 1,4 Kg | 86 mm | 54 mm | 69 mm | 89 mm |
| 20882 | Smart Socket™ 55 mm | 1,5 Kg | 86 mm | 54 mm | 69 mm | 89 mm |
| 20883 | Smart Socket™ 60 mm | 1,5 Kg | 86 mm | 54 mm | 69 mm | 89 mm |
| 23690 | Smart Socket™ 65 mm | 4,0 Kg | 115 mm | 87 mm | 90 mm | 121 mm |
| 20884 | Smart Socket™ 70 mm | 4,0 Kg | 115 mm | 87 mm | 90 mm | 121 mm |
| 20885 | Smart Socket™ 80 mm | 4,0 Kg | 115 mm | 87 mm | 90 mm | 121 mm |
| 25657 | Smart Socket™ 90 mm | 5,8 Kg | 131 mm | 99 mm | 99 mm | 115 mm |
| 25658 | Smart Socket™ 100 mm | 7, 2 Kg | 146 mm | 99 mm | 99 mm | 120 mm |
| Q14314 | Smart Socket™ 110 mm | n/a | n/a | n/a | n/a | n/a |
TORQUE AUDIT EQUIPMENT CALIBRATION BENCH
RAD TRANSDUCER SERIES
RANGE: 100 – 9.500Nm

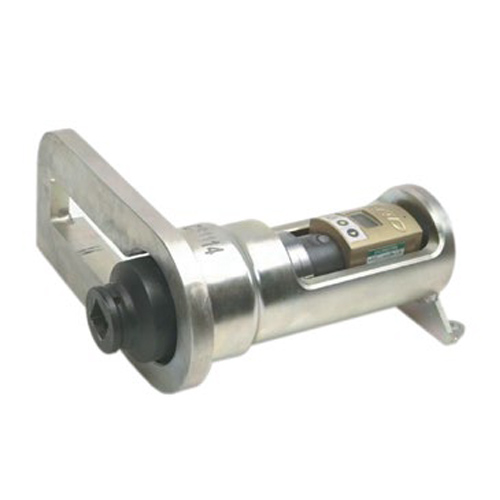

RAD Transducer series.
The accuracy and the repeatability of RAD Calibration benches have earned an excellent reputation in calibration laboratories around the world. The RAD Tube Style Calibration System was specially designed to calibrate RAD (and similar) torque wrenches. With the Tube Style bench design RAD was able to further reduce torque defection therefore, increasing the accuracy of the torque reading. The special designed reaction arm slot allows for much faster calibration of tools.
Watch video here for more info.
The system is available in two sizes of which the longer model can be equipped with two transducer sizes depending on the required torque. The calibration values can be read directly from the transducer screen. In addition, the calibration values can be read and stored by linking the RAD transducer to the supplied tablet using the RAD pneumatic calibration software. The RAD Calibration System consists of Tube Style bench, the transducer, the simulation joint, impact sockets and a preinstalled laptop with the requisite RAD calibration software.
CALIBRATION BENCH:
- Torque range up to 9.500 Nm
- Fully traceable calibration system, with recognized ISO 17025 calibration certificate
- Screen on transducer makes it easy to read calibration value
- Fast and easy link with RAD calibration software by using tablet
- Up to 2,050 Nm classified up to BS 7882:2008 as Class 1 or better for primary torque range (+/- 0.5% of the reading from 20% to 100% of the full scale)
- From 1,900 Nm to 9,500 Nm classified up to BS 7882:2008 as Class 0.5 or better for primary torque range (+/- 0.25% of the reading from 20% to 100% of the full scale)
- The transducer is interchangeable with previous RAD RCA Calibration benches.
All RAD Calibration Systems include:
- RAD Transducer
- Tube Style bench
- Simulation joint
- Impact sockets
- Preinstalled laptop
- ISO 17025 accredited calibration certificate
Product Data Sheets available below:
Tools Size and Torque Capacity Tables
| PRODUCT No. | MODEL | SQUARE DRIVE SIZE | TORQUE RANGE |
|---|---|---|---|
| 23442 | CALIBRATION SYSTEM RAD 1500 | 1" | 100 - 2.000 Nm |
| 23443 | CALIBRATION SYSTEM RAD 3500 | 1" | 250 - 4.750 Nm |
| 23444 | CALIBRATION SYSTEM RAD 7000 | 1½" | 475 - 9.500 Nm |
Tool Dimensions
| PRODUCT No. | MODEL | WEIGHT | Dim.A | Dim.B | Dim.C |
|---|---|---|---|---|---|
| 24305 | RAD 1500 TRANSDUCER ASSEMBLY | 1,8 Kg | 142 mm | 60 mm | 69 mm |
| 24120 | RAD 3500 TRANSDUCER ASSEMBLY | 4,5 Kg | 171 mm | 64 mm | 102 mm |
| 23164 | RAD 7000 TRANSDUCER ASSEMBLY | 4,9 Kg | 171 mm | 64 mm | 102 mm |
TUBE Stand Dimensions
| PRODUCT No. | MODEL | WEIGHT | Dim.A | Dim.B | Dim.C |
|---|---|---|---|---|---|
| 26127 | TUBE CALIBRATION STAND 1500 | 11,8 Kg | 247 mm | 138 mm | 281 mm |
| 26128 | TUBE CALIBRATION STAND 3500 / 7000 | 24,4 Kg | 368 mm | 177 mm | 332 mm |
