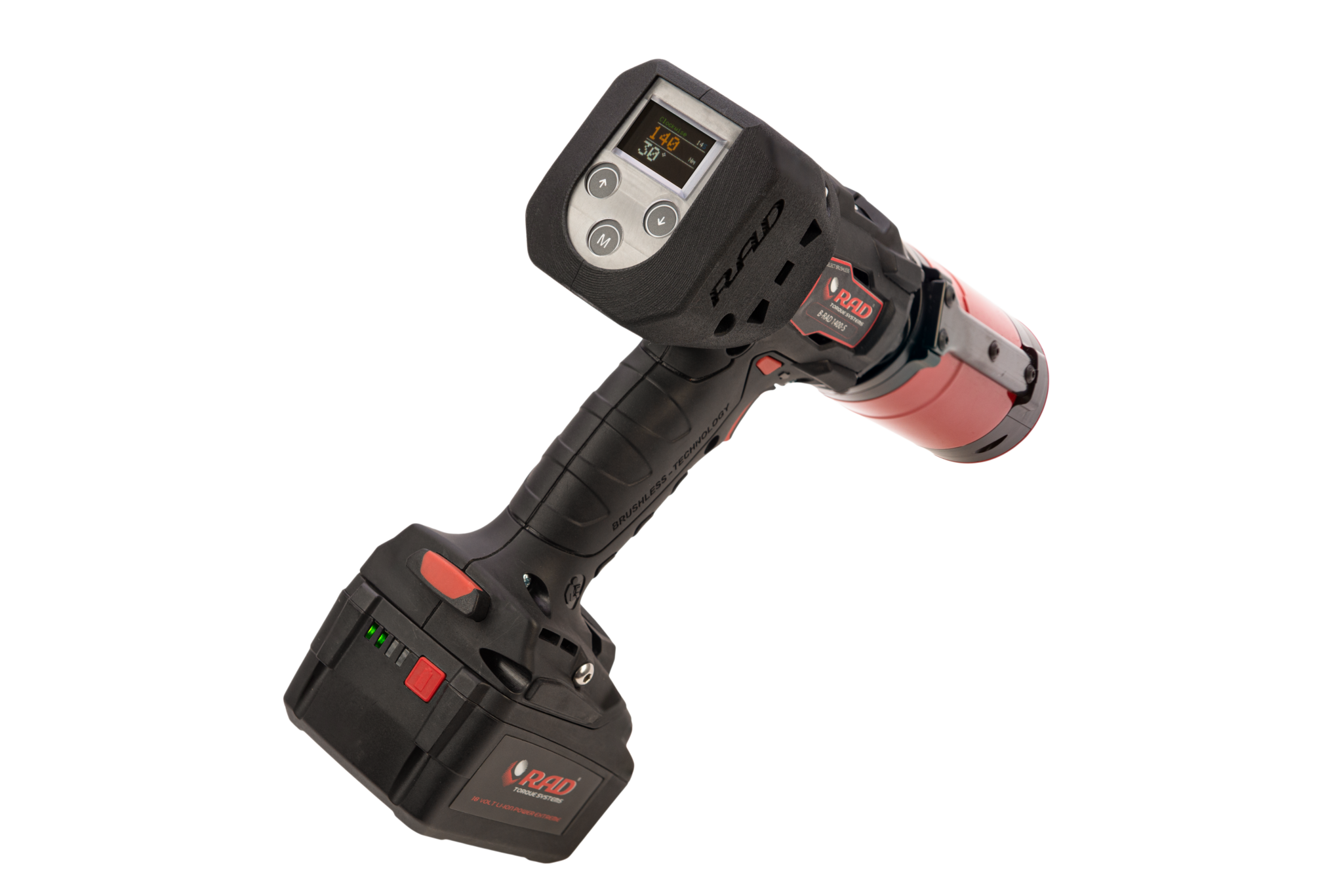

B-RAD X (BATTERY) NEW!
RANGE: 15,000Nm (11,000 Ft. Lbs.)
Brushless DC motor for added durability and accuracy.
Redesigned anti-fatigue trigger switch.
Standard handguard for added operator protection.
Two-hand start option.

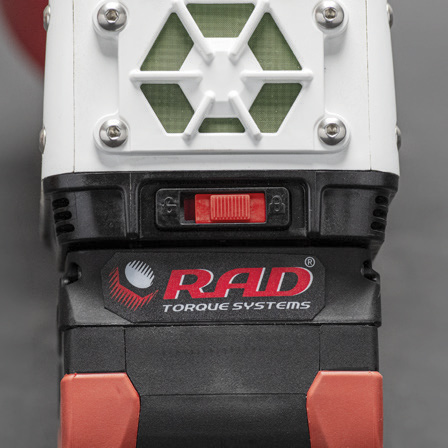

Latch lock to protect battery from falling from high heights.
4-button interface with high-contrast LED display provides feedback during operation.
Accuracy of 4% to target
RAD Torque System is taking torque to the extreme with the all-new B-RAD X. The latest generation of our popular battery tool series, the B-RAD X is raising the bar for torque range capacity with a battery tool, maxing out at an impressive 11,000 ft. lbs./15,000 Nm – making the B-RAD X officially the most powerful battery-powered torque tool on the market.
The B-RAD X is available in three different sizes:
B-RAD X 5,000 ft. lbs. / 7,000 Nm
B-RAD X 8,000 ft. lbs. / 10K Nm
B-RAD X 11K ft. lbs. / 15K Nm
Building off RAD Torque’s patented and world-renowned gearbox technology, the B-RAD X captures attention with its sleek new white design and rubber grip, a new high-performance motor, and its various features.
Fastening bolts in remote locations will now be easier for big industry as the cordless B-RAD X gives companies better mobility to torque and tension large bolts with less equipment to haul without compromising power or accuracy.
The B-RAD Xtreme has two patents pending in the U.S. One for mechanical technology and one for electronic technology.
Product Data Sheets available below:
Tools Size and Torque Capacity Tables
* Based on 10.9 class bolt
|TOOL MODEL||SQUARE DRIVE SIZE||TORQUE RANGE||RPM|
|B-RAD X 7000-M||1.5"||700-7000Nm||2.4|
|B-RAD X 10K-M||1.5"||1000-10850Nm||1.7|
|B-RAD X 15K-M||1.5"||1500-15000Nm||1.2|
|PART NUMBER||MODEL||WEIGHT||Dim. A||Dim. B||Dim. C||Dim. D|
|30657||B-RAD X 7000-M||10.5||318 mm||95 mm||95 mm||362 mm|
|30659||B-RAD X 10K-M||13.8||348 mm||108 mm||108 mm||369 mm|
|30661||B-RAD X 15K-M||19.3||387 mm||127 mm||127 mm||375 mm|
