Rad-Torque-Products

E-RAD BLU SERIES

RANGE: 135 – 15,000Nm

E-RAD Series pistol grip electronic torque wrenches are lighter, faster, stronger and more reliable than other conventional means of bolting.

Accurate to +/- 3%, this patented tool ensures that each bolt will be tightened to exacting standards.

All E-RAD tools come fully calibrated & complete with :

  • Reaction arm and retaining ring
  • Weatherproof storage case
  • Controller cable
  • Digital torque controller case
  • USB port
  • User manual
  • Calibration certificate
  • Data logging software
  • Safety instruction on USB stick
E-RAD-BLU-700-SERIES
E-RAD-KIT
E-RAD-KIT
E-RAD-SERIES-10k
E-RAD-SERIES-10k

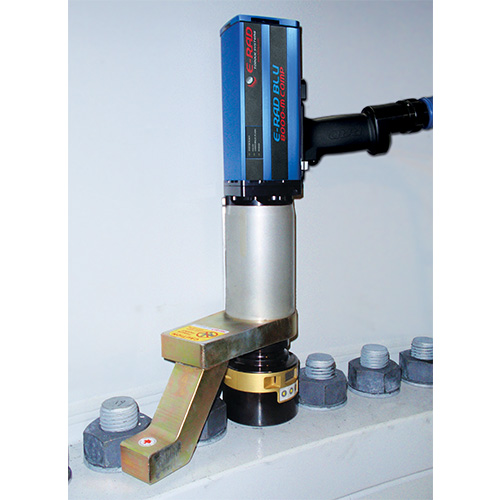

E-RAD-SERIES-BOLT-ON
E-RAD-SERIES-BOLT-ON
E-RAD-SERIES-APPLICATION
E-RAD-SERIES-APPLICATION
E-RAD-SERIES-Dimensions

Product Data Sheets available below:

Tools Size and Torque Capacity Tables

* Based on 10.9 class bolt

PRODUCT DATASHEETTOOLKITBOLT SIZESQUARE DRIVE SIZETORQUE RANGERPM
21985E-RAD BLU 950M16 - M27¾"135 - 950 Nm30
24162E-RAD BLU 2000M24 - M361"270 - 2.000 Nm9
21986E-RAD BLU 3400M24 - M361"340 - 3.400 Nm10
22434E-RAD BLU 3400-90°M24 - M361"340 - 3.400 Nm10
21987E-RAD BLU 4000M27 - M421"675 - 4.500 Nm8
200415E-RAD BLU 4000M27 - M421½”675 - 4.500 Nm8
21988E-RAD BLU 8000M35 - M561½"1.385 - 8.100 Nm4
21989E-RAD BLU 10KM45 - M561½"2.034 - 10.000 Nm2
24224E-RAD BLU 15KM56 - M721½"4.050 - 15.000 Nm2

Tools Size and Torque Capacity Tables

* Based on 10.9 class bolt

PRODUCT DATASHEETTOOLKIT METRICTOOLKIT IMPERIALBOLT SIZESQUARE DRIVE SIZETORQUE RANGE METRICTORQUE RANGE IMPERIALRPM
21985E-RAD BLU 950E-RAD BLU 700M16 - M27¾"135 - 950 Nm100 - 700 ft.lbs30
24162E-RAD BLU 2000E-RAD BLU 1500M24 - M361"270 - 2.000 Nm200 - 1.500 ft.lbs9
21986E-RAD BLU 3400E-RAD BLU 2500 COMPM24 - M361"340 - 3.400 Nm250 - 2.500 ft.lbs10
22434E-RAD BLU 3400-90°E-RAD BLU 2500 COMP - 90°M24 - M361"340 - 3.400 Nm250 - 2.500 ft.lbs10
21987E-RAD BLU 4000E-RAD BLU 3000M27 - M421"675 - 4.500 Nm500 - 3.000 ft.lbs8
200415E-RAD BLU 4000E-RAD BLU 3000M27 - M421½”675 - 4.500 Nm500 - 3.000 ft.lbs8
21988E-RAD BLU 8000E-RAD BLU 6000M35 - M561½"1.385 - 8.100 Nm1.500 - 6.000 ft.lbs4
21989E-RAD BLU 10KE-RAD BLU 7500M45 - M561½"2.034 - 10.000 Nm1.500 - 7.500 ft.lbs2
24224E-RAD BLU 15KE-RAD BLU 11KM56 - M721½"4.050 - 15.000 Nm3.000 - 11.000 ft.lbs2

Tool Dimensions

PART No.MODELWEIGHTDim. ADim. BDim. CDim. D
22056E-RAD BLU 9505,4 Kg340 mm65 mm78 mm245 mm
23330E-RAD BLU 20005,9 Kg337 mm69 mm76 mm288 mm
22057E-RAD BLU 34008,1 Kg380 mm70 mm78 mm245 mm
23113E-RAD BLU 3400-90°8,3 Kg210 mm76 mm78 mm245 mm
22058E-RAD BLU 400010,6 Kg430 mm83 mm88 mm260 mm
200416E-RAD BLU 400010,6 Kg430 mm83 mm88 mm260 mm
22059E-RAD BLU 800013,0 Kg430 mm100 mm100 mm260 mm
22060E-RAD BLU 10K15,0 Kg430 mm105 mm105 mm265 mm
n/aE-RAD BLU 15K20,1 Kg466 mm127 mm127 mm273 mm
Rad-Torque-Products

E-RAD BLU-S SERIES

RANGE: 135 – 10,000Nm

In addition to the standard E-RAD BLU, RAD also offers the E-RAD BLU-S, a transducer equipped E-RAD BLU for the highest accuracy on the market featuring torque measurement on the bolt.

This electronic torque wrench automatically adjusts and calibrates itself via a built-in transducer on your bolt connection. This system eliminates all joint sensitivity. The E-RAD BLU-S has its transducers position on the outpoint of the gearbox and guaranties therefore that torque displayed is torque applied to the fastener.

All E-RAD Blu-S tools come fully calibrated & complete with :

  • Built in transducer
  • Reaction arm and retaining ring
  • Weatherproof storage case
  • Controller cable 4,6 meter
  • Digital torque controller case
  • Data logging software
  • User manual
  • Calibration certificate
  • Safety instruction on USB stick
E-RAD-SERIES-Blu-S2
E-RAD-SERIES-Blu-S
E-RAD-Blu-SERIES-SCREEN

Product Data Sheets available below:

Tools Size and Torque Capacity Tables

* Based on 10.9 class bolt

PRODUCT DATASHEETTOOLKITBOLT SIZESQUARE DRIVE SIZETORQUE RANGERPM
26937E-RAD BLU 950-SM16 - M27¾"135 - 950 Nm15
26938E-RAD BLU 3400-SM24 - M361"340 - 3.400 Nm10
22759E-RAD BLU 4000-SM27 - M421"675 - 4.050 Nm8
25282E-RAD BLU 8000-SM36 - M561½"1.385 - 8.100 Nm4
26939E-RAD BLU 10K-SM45 - M561½"2.034 - 10.000 Nm2

Tools Size and Torque Capacity Tables

* Based on 10.9 class bolt

PRODUCT DATASHEETTOOLKITColumn1BOLT SIZESQUARE DRIVE SIZETORQUE RANGE METRICTORQUE RANGE IMPERIALRPM
26937E-RAD BLU 950-SE-RAD BLU 700-SM16 - M27¾"135 - 950 Nm100 - 700 ft.lbs15
26938E-RAD BLU 3400-SOLD MODELM24 - M361"340 - 3.400 Nm10
22759E-RAD BLU 4000-SE-RAD BLU 3000-SM27 - M421"675 - 4.050 Nm500 - 3.000 ft.lbs8
25282E-RAD BLU 8000-SE-RAD BLU 6000-SM36 - M561½"1.385 - 8.100 Nm1.000 - 6.000 ft.lbs4
26939E-RAD BLU 10K-SE-RAD BLU 7500-SM45 - M561½"2.034 - 10.000 Nm1.500 - 8.000 ft.lbs2
E-RAD BLU 15K-SE-RAD BLU 11K-S4.050 - 15.000 Nm3.000 - 11.000 ft.lbs1.5

Tool Dimensions

PART No.MODELWEIGHTDim. ADim. BDim. CDim. D
26937E-RAD BLU 950-S5,4 Kg340 mm80 mm78 mm245 mm
26938E-RAD BLU 3400-S8,1 Kg380 mm85 mm78 mm245 mm
22759E-RAD BLU 4000-S10,6 Kg430 mm98 mm88 mm260 mm
25282E-RAD BLU 8000-S13,0 Kg430 mm115 mm100 mm260 mm
26939E-RAD BLU 10K-S15,0 Kg430 mm120 mm105 mm265 mm
